Increase Safety with a Quick Temperature Check!
To ensure that individuals entering a location are not running a high temperature, CAPTUS SYSTEMS is pleased to offer the new Tauri QuickTemp Tablet infrared temperature sensor/detector. This state-of-the-art sensor provides alerts within 1-second, when someone is running a fever.
The QuickTemp system uses an advanced algorithm for detecting & calculating heat signatures. Based on technology developed in Germany, this highly accurate technology measures with a tolerance of +/- 0.5 degrees Celsius (+/- 0.9 degrees Fahrenheit).
Why the Tauri QuickTemp Tablet temperature sensor?
- It provides the first layer of screening protection
- It’s more hygienic to use the type of non-touch infrared
- technology that it provides
Multiple devices can be monitored by a single user - The camera is 180° reversible
Options:

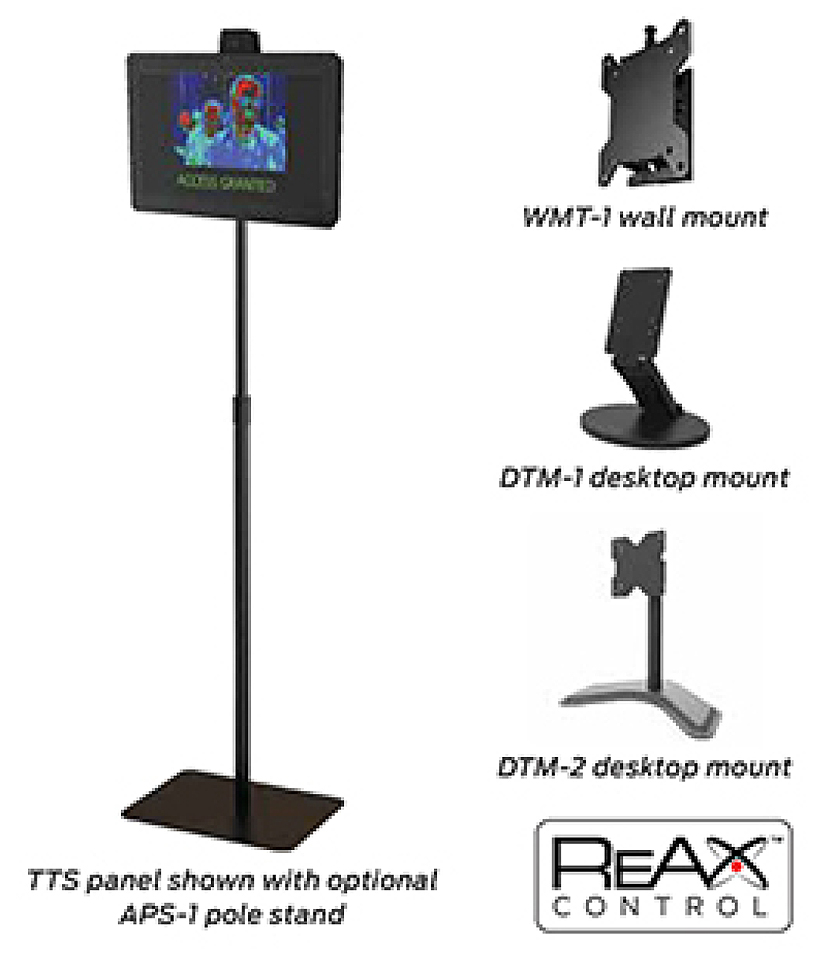

- APS-1 adjustable pole-stand with weighted base

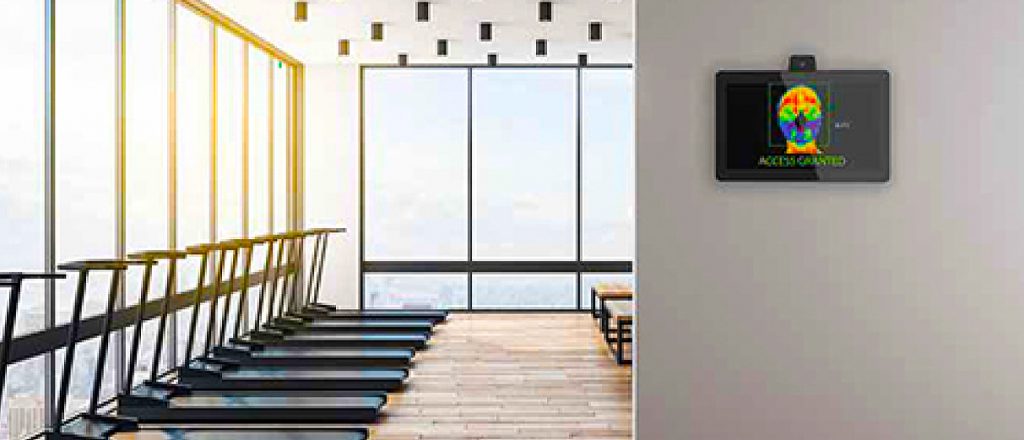

- WMT-1 wall mount
- DTM-1/DTM-2 desktop stands
- Future firmware upgrade options:
- Photo & thermal result e-mail alerts
- Facial recognition
- Customized flagging
- ReAX control
- Integration with third-party control and access systems
Included in the Shipping GUI
- Guided setup wizard for the most common and required settings
- Full configuration pages including:
- WiFi setup
- Ethernet setup
- Date and time setup
- Temperature and detection settings
- Unit (F or C)
- Max temp
- Audio alert
- Require face mask
- Show face outline
- Calibration
- Show digital signage & timeout
- Misc settings
- Password
- Default kiosk view (user or admin)
- Manual kiosk controls, reboot controls
- LCD brightness
- Volume
- User view – the default view that the end user would see on the screen, limited info for privacy concerns
- Camera video feed w/configurable outline to aid with positioning
- Color changing status bars at top and bottom for pass/fail messages (messages will be user-definable in a future build)
- Face outline to indicate face detection (gray for no face, green for face)
- Hand outlines to aid in positioning for gesture detection*
- Dynamic thermometer to indicate temperature (green for pass, red for fail)
- Mask outline if mask detection enabled (green for mask detected, yellow for no mask)
- On screen instructions (will be user-definable in a future build)
- Buttons to navigate to system info and config pages (password protected)
- Admin view – same as user view but more optimized for an operator, additional features below
- Thermal video feed
- Text indicators for face, temperature, mask, and gesture* detection
- Digital signage
- A sample digital signage page to serve as a template for customization
- After X seconds (configurable) of no face detection, the GUI will switch to an alternate view showing digital signage
- When a face is detected, the GUI switches back to the default interface
- Future update allows for a custom URL
Additional Capabilities
- *Gesture recognition (*fully working but currently disabled – it should be back in the next build)
- Requires customization, user can answer questions by raising their right or left hands, or both
- QR code scanning
- Requires customization, allows the user to scan a QR code
- Digital signage
- Customizable, allow user to make one or many digital signage frames
- Anything else that ReAX is capable of (except for email, that should be ready soon)
- API for making custom applications
Tauri QuickTemp Tablets are designed to detect temperature anomalies. It’s important to understand that there are many factors – including environmental & physiological – that can impact a person’s surface temperature reading. Skin surface temperature vs actual core body temperature may differ either way. Tauri QuickTemp Tablets must be operated in accordance with the manufacturer’s user guide. These Tablets are not intended nor designed to diagnose or detect medical conditions including, but not limited to viruses or other illnesses. Tauri QuickTemp Tablets should only be used to detect variations in surface temperature. In the event that an elevated skin temperature is detected, the subject should be advised to check temperature with an approved medical thermometer, & the finding confirmed. Absence of an elevated skin temperature does not preclude a fever.
This device is not FDA-cleared or approved.
Tauri QuickTemp Tablets come with a 2-Year Warranty
Technical Specifications:
| TTS-10 | TTS-15 | TTS-21 | ||
|---|---|---|---|---|
| SCREEN SIZE | 10” | 15.5” | 21.5” | |
| PANEL | ||||
| RESOLUTION: | 1280 x 800 | ---------------1920 x 1080------------ | ||
| BRIGHTNESS: | 350 cd/m2 | ----------------250 cd/m2------------- | ||
| CONTRAST RATIO: | 800:1 | ------------------1000:1---------------- | ||
| ASPECT RATIO: | 16:10 | --------------------16:9------------------ | ||
| ACTIVE DISPLAY AREA: | 134.8 x 216.2mm | 344.16 x 193.59mm | 476.06 x 267.786mm | |
| VIEWING ANGLE: | H: 170° / V170° | -------------H: 178° / V178°---------- | ||
| TOUCH TECH: | 5-point cap touch (6H semi-tempered glass) |
----------10-point cap touch-------- (reflective glass) |
||
| HARDWARE & OPERATING SYSTEM | ||||
| CPU | --------------------RK3288 Cortex A17, Quad core 1.8HHz------------------ | |||
| RAM: | ---------------------------------------2GB DDR3------------------------------------- | |||
| ROM: | -----------------------------------8GB eMMC Flash-------------------------------- | |||
| OS: | --------------------------------------Android 7.1------------------------------------ | |||
| VIDEO/IMAGE | ||||
| VIDEO FORMAT: | H.265, VP8, RV, WMV, AV5 | H.265, VP8, RV, WMV, AV5, H.263, MPEG4 | ||
| IMAGE FORMAT: | ----------------------------------JPEG/BMP/PNG----------------------------------- | |||
| AUDIO FORMAT: | ------------------------------MP3/WMA/AAC, etc--------------------------------- | |||
| AUDIO | ||||
| SPEAKER: | 1W x 2 | --------------------2W x 2------------------- | ||
| COMMUNICATION | ||||
| BLUETOOTH: | ------------------------------------EDR 4.0-------------------------------------------- | |||
| WiFi: | ---------------------802.11 b/g/n 2.4GHz and 5GHz---------------------------- | |||
| ETHERNET: | ---------------------------------10/100 LAN----------------------------------------- | |||
| GENERAL INFORMATION | ||||
| COLOR: | --------------------------------------Black-------------------------------------------- | |||
| I/O: |
RJ45 x1, USB x1; SD Slot x1 Micro-USB x1; 3.5mm Audio x1; Recover x1; Expandable 2 USB |
RJ45 x1, USB x4; SD Slot x1; Micro-USB x1; 3.5mm Audio x1; Recover x1; GPIO Support |
RJ45 x1, USB x4; SD Slot x1; Micro-USB x1; 3.5mm Audio x1; Recover x1; RS232 x2; GPIO Support |
|
| AV CAPABILITY: | ----------------------Front-Facing Camera 2MP Focus----------------------- | |||
| INCLUDED IN BOX: | -------------------Tablet, Power Adapter, Power Cable---------------------- | |||
| SENSORS: | ------------------------------------G-Sensor----------------------------------------- /td> | |||
| CONSUMPTION: | 11W | 15W | 32W | |
| POWER INPUT: | 12V 2A or PoE (802.3at) | -------------------12V 5A----------------- | ||
| OPERATING ENVIRONMENT | Operating 32°F to 100°F (0°C to 40°C); | Storage: -4°F to 122°F (-20°C to 50°C) | Operating: 205 – 80%; Storage: 10% - 95% | |
| CERTIFICATION: | ---------------------------------CE,FCC, ROHS------------------------------------- | |||
| LANGUAGE: | --------------------------------Multi-Language----------------------------------- | |||
| VESA: | VESA 75 | ------------------VESA 100--------------- | ||
| WARRANTY: | -------------------------------------2 Years------------------------------------------ | |||
| INFRARED TEMP SENSOR | ||||
| POWER INPUT: | ------------------------3.3-3.6, 50mA, USB Connect--------------------------- | |||
| SIZE: | ------------------------65.2mm x 38.5mm x 22mm---------------------------- | |||
| TEMP CHECK DISTANCE | ----------------------------------0.3 m – 1m--------------------------------------- | |||
| TEMP CHECK RANGE: | ----------------------------------30°C - 45°C-------------------------------------- | |||
| TEMP CHECK ERROR: | ------------------------------- +/- 0.5° @ 1Hz------------------------------------- | |||
| DIMENSION | ||||
| SIZE: (WxDxH) | 267 x 34 x 165mm | 383.8 x 223.2 x 30.1mm | 534.5 x 326 x 47.6326mm | |
| PRODUCT WEIGHT: | 700g | 1.4Kg | 3.8Kg | |
| BOX SIZE: | 385 x 65 x 22mm | 444 x 348 x 112mm | 582 x 422 x 114mm | |
FAQs
+/- 0.5 degrees Celsius
3 feet
1 – 3 seconds
Currently no – but it will be offered in the future
Not at this time, as it must be affixed to the tablet
Yes – as long as the face is shown in the detection area
The screen shows the person’s face & temperature
An alert sound is emitted if a temperature is above the set range
It is designed only to detect people
